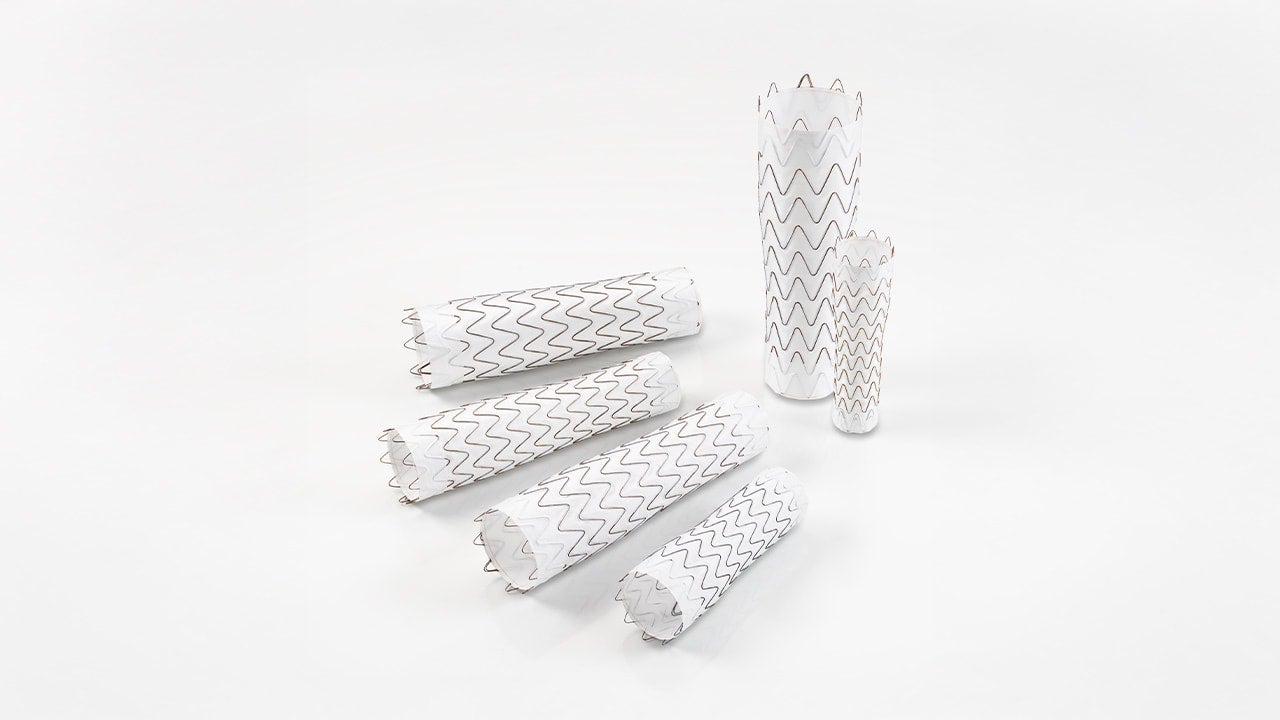

Catalogue numbers for GORE® TAG® Conformable Thoracic Stent Graft with ACTIVE CONTROL System
Now Available: Four Large-Diameter Tapered Devices
New Large-Diameter Tapered Devices
Explore your expanded options for patients with tapered thoracic aortic anatomy.
Large-Diameter Tapered Devices | |||||||
|---|---|---|---|---|---|---|---|
| Catalogue Number | Proximal Diameter (mm) | Intended Aortic Diameter (mm) | Distal Diameter (mm) | Endoprosthesis Length (cm) | Recommended GORE® DRYSEAL Flex Introducer Sheath Size (Fr) | Oversizing Range (%) | Partially Uncovered Stent Length (mm) |
| TGM342815 | 27-32/22-26 | 34 | 28 | 15 | 22 | 6–27 | 5 |
| TGMR373115 | 29-34/24-29 | 37 | 31 | 15 | 22 | 7–29 | 5 |
| TGMR403415 | 31-37/27-32 | 40 | 34 | 15 | 22 | 6–29 | 6 |
| TGM453715 | 34-42/29-34 | 45 | 37 | 15 | 24 | 7–32 | 6.5 |
Straight devices and Tapered devices | |||||||
|---|---|---|---|---|---|---|---|
Catalogue Number | Intended Diameter (mm) | Proximal Diameter (mm) | Distal Diameter (mm) | Endoprosthesis Length (cm) | Recommended GORE® DRYSEAL Flex Introducer Sheath Size (Fr) | Oversizing Range (%) | Partially Uncovered Stent Length (mm) |
| Straight Devices | |||||||
| TGM212110 | 16–19.5 | 21 | 21 | 10 | 18 | 8–31 | 3 |
| TGM262610 | 19.5–24 | 26 | 26 | 10 | 20 | 8–33 | 4 |
| TGM282810 | 22–26 | 28 | 28 | 10 | 20 | 8–27 | 4 |
| TGM282815 | 22–26 | 28 | 28 | 15 | 20 | 8–27 | 4 |
| TGMR313110 | 24–29 | 31 | 31 | 10 | 20 | 7–29 | 4 |
| TGMR313115 | 24–29 | 31 | 31 | 15 | 20 | 7–29 | 4 |
| TGMR313120 | 24–29 | 31 | 31 | 20 | 20 | 7–29 | 4 |
| TGM343410 | 27–32 | 34 | 34 | 10 | 22 | 6–26 | 5 |
| TGM343415 | 27–32 | 34 | 34 | 15 | 22 | 6–26 | 5 |
| TGM343420 | 27–32 | 34 | 34 | 20 | 22 | 6–26 | 5 |
| TGMR373710 | 29–34 | 37 | 37 | 10 | 22 | 9–28 | 5 |
| TGMR373715 | 29–34 | 37 | 37 | 15 | 22 | 9–28 | 5 |
| TGMR373720 | 29–34 | 37 | 37 | 20 | 22 | 9–28 | 5 |
| TGMR404010 | 31–37 | 40 | 40 | 10 | 22 | 8–29 | 6 |
| TGMR404015 | 31–37 | 40 | 40 | 15 | 22 | 8–29 | 6 |
| TGMR404020 | 31–37 | 40 | 40 | 20 | 22 | 8–29 | 6 |
| TGM454510 | 34–42 | 45 | 45 | 10 | 24 | 7–32 | 6.5 |
| TGM454515 | 34–42 | 45 | 45 | 15 | 24 | 7–32 | 6.5 |
| TGM454520 | 34–42 | 45 | 45 | 20 | 24 | 7–32 | 6.5 |
| Tapered Devices* | |||||||
| TGM262110 | 19.5-24/16-19.5 | 26 | 21 | 10 | 20 | 8–33 | 4 |
| TGMR312610 | 24-29/19.5-24 | 31 | 26 | 10 | 20 | 7–33 | 4 |
| TGM342815 | 27-32/22-26 | 34 | 28 | 15 | 22 | 6–27 | 5 |
| TGMR373115 | 29-34/24-29 | 37 | 31 | 15 | 22 | 7–29 | 5 |
| TGMR403415 | 31-37/27-32 | 40 | 34 | 15 | 22 | 6–29 | 6 |
| TGM453715 | 34-42/29-34 | 45 | 37 | 15 | 24 | 7–32 | 6.5 |
* Some sizes not available in all markets.
Looking for information about Conformable GORE® TAG® Thoracic Endoprosthesis?
See the Conformable GORE® TAG® Thoracic Endoprosthesis product page for an overview and specifications.
Sizing, availability, and pricing varies by country.
Please check with your Gore representative for availability.
Refer to Instructions for Use at eifu.goremedical.com for a complete description of all applicable indications, warnings, precautions and contraindications for the markets where this product is available. RXOnly
INDICATIONS FOR USE IN THE U.S.: The GORE® TAG® Conformable Thoracic Stent Graft is intended for endovascular repair of all lesions of the descending thoracic aorta, including: isolated lesions in patients who have appropriate anatomy, including: adequate iliac/femoral access, aortic inner diameter in the range of 16-42 mm, ≥ 20 mm non-aneurysmal aorta proximal and distal to the lesion; Type B dissections in patients who have appropriate anatomy, including: adequate iliac/femoral access, ≥ 20 mm landing zone proximal to the primary entry tear; proximal extent of the landing zone must not be dissected, diameter at proximal extent of proximal landing zone in the range of 16-42 mm.
CONTRAINDICATIONS: Patients with known sensitivities or allergies to the device materials; patients who have a condition that threatens to infect the graft.
