Catalogue Numbers for GORE® VIABIL® Biliary Endoprosthesis for Endoscopic and Percutaneous delivery

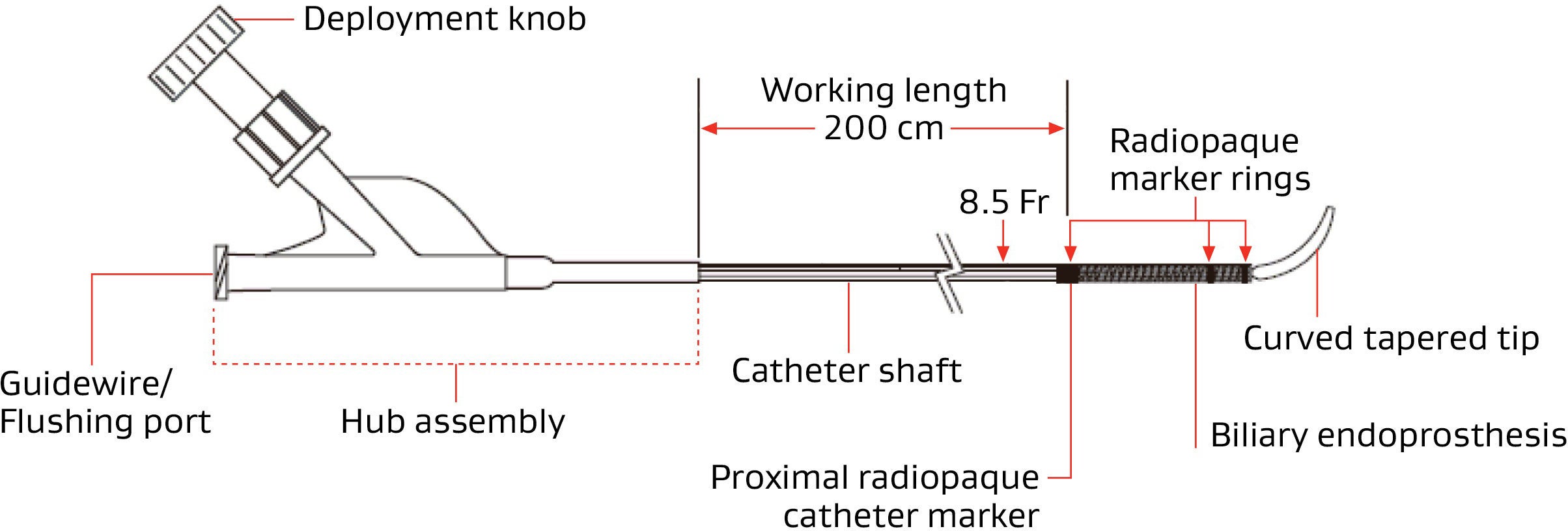

GORE® VIABIL® Biliary Endoprosthesis Endoscopic Delivery System

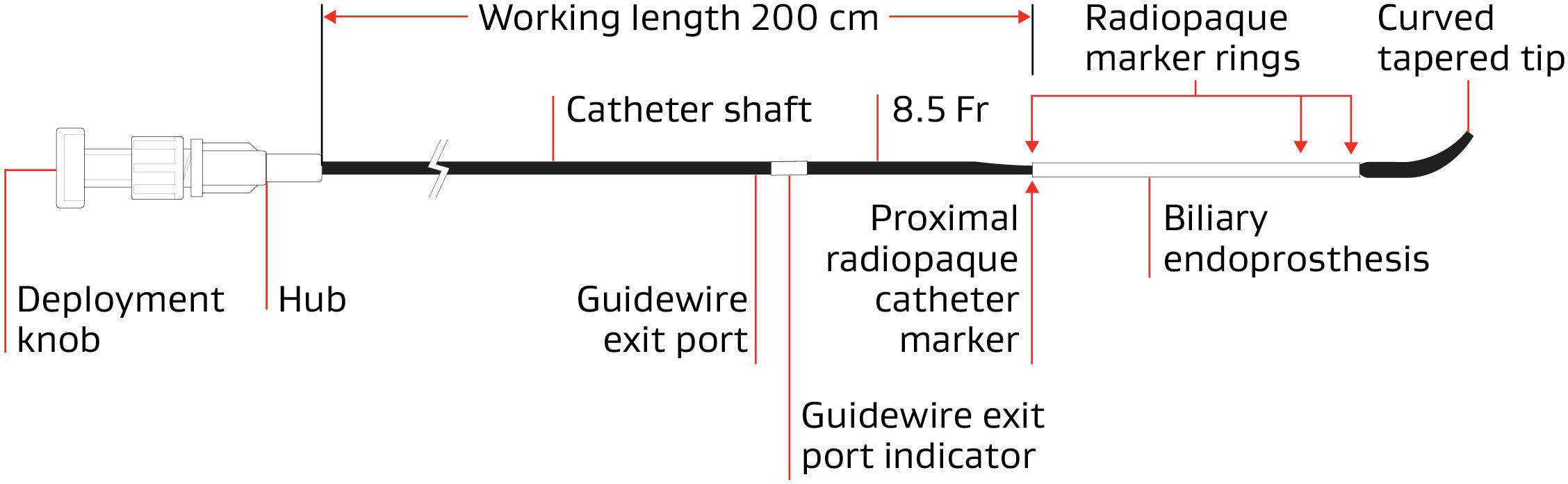

GORE® VIABIL® Short Wire Biliary Endoprosthesis Endoscopic Delivery System
Endoscopic delivery - United States | |||||
|---|---|---|---|---|---|
GORE® VIABIL® Biliary Endoprosthesis Catalogue Number | GORE® VIABIL® Short Wire Biliary Endoprosthesis Catalogue Number | Nominal Endoprosthesis Diameter (mm) × Length (cm) | Working Length of Delivery Catheter (cm) | Drainage Holes Located at the Hilar Region | Transmural Drainage Holes Length (cm) |
VN1010200 | VSWVN1010 | 10 × 10 | 200 | No holes | - |
VN1008200 | VSWVN1008 | 10 × 8 | 200 | No holes | - |
VN1006200 | VSWVN1006 | 10 × 6 | 200 | No holes | - |
VN1004200 | VSWVN1004 | 10 × 4 | 200 | No holes | - |
VN0810200 | VSWVN0810 | 8 × 10 | 200 | No holes | - |
VN0808200 | VSWVN0808 | 8 × 8 | 200 | No holes | - |
VN0806200 | VSWVN0806 | 8 × 6 | 200 | No holes | - |
VN0804200 | VSWVN0804 | 8 × 4 | 200 | No holes | - |
VH1010200 | VSWVH1010 | 10 × 10 | 200 | Holes | 2 |
VH1008200 | VSWVH1008 | 10 × 8 | 200 | Holes | 2 |
VH1006200 | VSWVH1006 | 10 × 6 | 200 | Holes | 2 |
VH0810200 | VSWVH0810 | 8 × 10 | 200 | Holes | 2 |
VH0808200 | VSWVH0808 | 8 × 8 | 200 | Holes | 2 |
VH0806200 | VSWVH0806 | 8 × 6 | 200 | Holes | 2 |
Endoscopic delivery - Canada | |||
|---|---|---|---|
GORE® VIABIL® Biliary Endoprosthesis Catalogue Number | Nominal Endoprosthesis Diameter (mm) × Length (cm) | Working Length of Delivery Catheter (cm) | Drainage Holes Located at the Hilar Region |
VH0806200 | 8 × 6 | 200 | Holes |
VH0808200 | 8 × 8 | 200 | Holes |
VH0810200 | 8 × 10 | 200 | Holes |
VH1006200 | 10 × 6 | 200 | Holes |
VH1008200 | 10 × 8 | 200 | Holes |
VH1010200 | 10 × 10 | 200 | Holes |
VN0804200R | 8 × 4 | 200 | No holes |
VN0806200R | 8 × 6 | 200 | No holes |
VN0808200R | 8 × 8 | 200 | No holes |
VN0810200R | 8 × 10 | 200 | No holes |
VN1004200R | 10 × 4 | 200 | No holes |
VN1006200R | 10 × 6 | 200 | No holes |
VN1008200R | 10 × 8 | 200 | No holes |
VN1010200R | 10 × 10 | 200 | No holes |

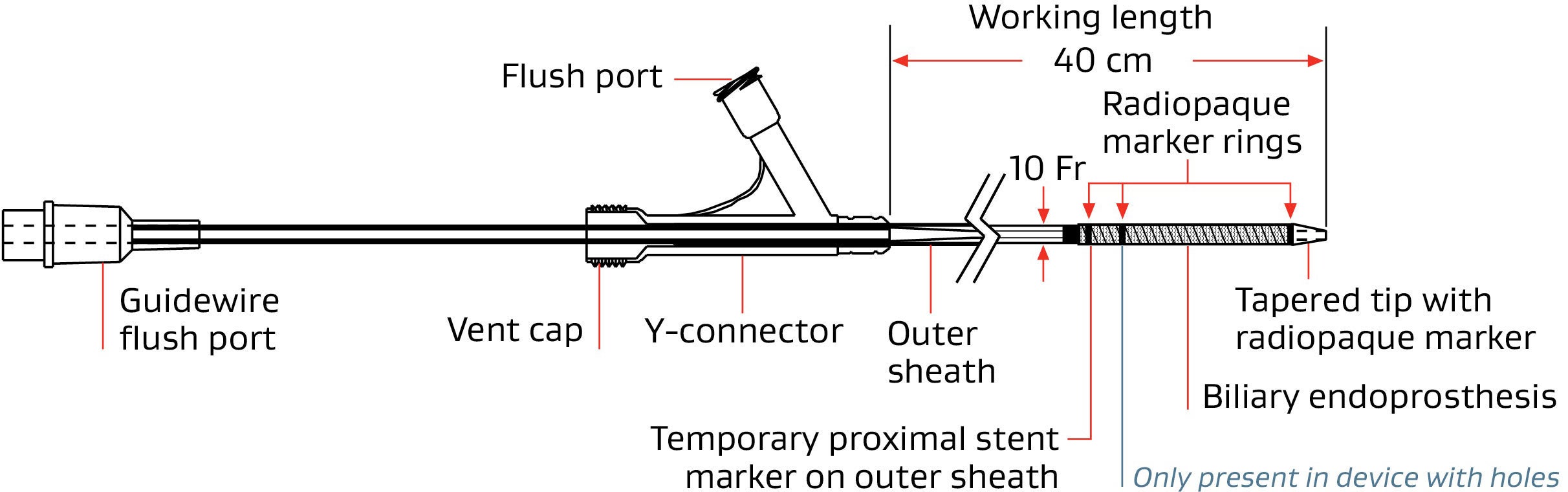

GORE® VIABIL® Biliary Endoprosthesis Percutaneous Delivery System
Percutaneous delivery - United States | |||
|---|---|---|---|
GORE® VIABIL® Biliary Endoprosthesis Catalogue Number | Nominal Endoprosthesis Diameter (mm) × Length (cm) | Working Length of Delivery Catheter (cm) | Drainage Holes Located at the Hilar Region |
VH0806040 | 8 × 6 | 40 | Holes |
VH0808040 | 8 × 8 | 40 | Holes |
VH0810040 | 8 × 10 | 40 | Holes |
VH1006040 | 10 × 6 | 40 | Holes |
VH1008040 | 10 × 8 | 40 | Holes |
VH1010040 | 10 × 10 | 40 | Holes |
VN0804040 | 8 × 4 | 40 | No holes |
VN0806040 | 8 × 6 | 40 | No holes |
VN0808040 | 8 × 8 | 40 | No holes |
VN0810040 | 8 × 10 | 40 | No holes |
VN1004040 | 10 × 4 | 40 | No holes |
VN1006040 | 10 × 6 | 40 | No holes |
VN1008040 | 10 × 8 | 40 | No holes |
VN1010040 | 10 × 10 | 40 | No holes |
Note: GORE® VIABIL® Short Wire Biliary Endoprosthesis is not licensed in Canada in accordance with the Canadian Medical Device Regulation SOR/98-282.
Sizing, availability and pricing varies by country. For U.S./Canada:
Endoscopic delivery: Contact your Olympus Sales Associate for support and product availability. Visit here for further support.
Percutaneous delivery: Contact your Gore Sales Associate for support and product availability. Visit here for further support.
Refer to Instructions for Use at eifu.goremedical.com for a complete description of all applicable indications, warnings, precautions and contraindications for the markets where this product is available. RXOnly
FOR ENDOSCOPIC DELIVERY IN THE U.S.
INDICATIONS: (Non-Removable) The GORE® VIABIL® Biliary Endoprosthesis is indicated for palliation of malignant strictures in the biliary tree.
CONTRAINDICATIONS: The GORE® VIABIL® Biliary Endoprosthesis is contraindicated for: ALL CARDIOVASCULAR APPLICATIONS; ducts less than 5.5 mm in diameter or greater than 9 mm in diameter.
FOR GORE® VIABIL® SHORT WIRE BILIARY ENDOPROSTHESIS FOR ENDOSCOPIC DELIVERY IN THE U.S.
INDICATIONS: (Non-Removable) The GORE® VIABIL® Short Wire Biliary Endoprosthesis is indicated for palliation of malignant strictures in the biliary tree.
CONTRAINDICATIONS: The GORE® VIABIL® Short Wire Biliary Endoprosthesis is contraindicated for. All CARDIOVASCULAR APPLICATIONS; ducts less than 5.5 mm in diameter or greater than 9 mm in diameter.
FOR PERCUTANEOUS DELIVERY IN THE U.S.
INDICATIONS: (Non-Removable) The GORE® VIABIL® Biliary Endoprosthesis is indicated for palliation of malignant strictures in the biliary tree.
CONTRAINDICATIONS: The GORE® VIABIL® Biliary Endoprosthesis is contraindicated for: ALL CARDIOVASCULAR APPLICATIONS; ducts less than 5.5 mm in diameter or greater than 9 mm in diameter.
FOR ENDOSCOPIC DELIVERY IN CANADA.
INDICATIONS: (Non-Removable): The GORE® VIABIL® Biliary Endoprosthesis is indicated for palliation of malignant strictures in the biliary tree. (Removable): The Removable GORE® VIABIL® Biliary Endoprosthesis is indicated for the treatment of benign and malignant biliary strictures and can be removed from such strictures for up to one year post implant.
CONTRAINDICATIONS: (Non-Removable): The GORE® VIABIL® Biliary Endoprosthesis is contraindicated for: ALL CARDIOVASCULAR APPLICATIONS; ducts less than 5.5 mm in diameter or greater than 9 mm in diameter. (Removable): The Removable GORE® VIABIL® Biliary Endoprosthesis is contraindicated for: ALL CARDIOVASCULAR APPLICATIONS; ducts less than 5.5 mm in diameter or greater than 9 mm in diameter and removal when positioned within a previously placed bare metal stent.
GORE® VIABIL® Short Wire Biliary Endoprosthesis is not authorized for use in Canada.
GORE® VIABIL® Biliary Endoprosthesis and GORE® VIABIL® Short Wire Biliary Endoprosthesis are not authorized for the treatment of benign biliary strictures and removability in U.S.
